TL;DR
A container condition checklist is a critical procedure for inspecting a shipping container’s physical integrity before loading cargo. This systematic check verifies that the front wall, sides, floor, roof, doors, and undercarriage are secure, watertight, and free from damage. Following this checklist helps prevent cargo damage, ensures regulatory compliance, and protects against security risks, guaranteeing your goods are transported in a safe and sound unit.

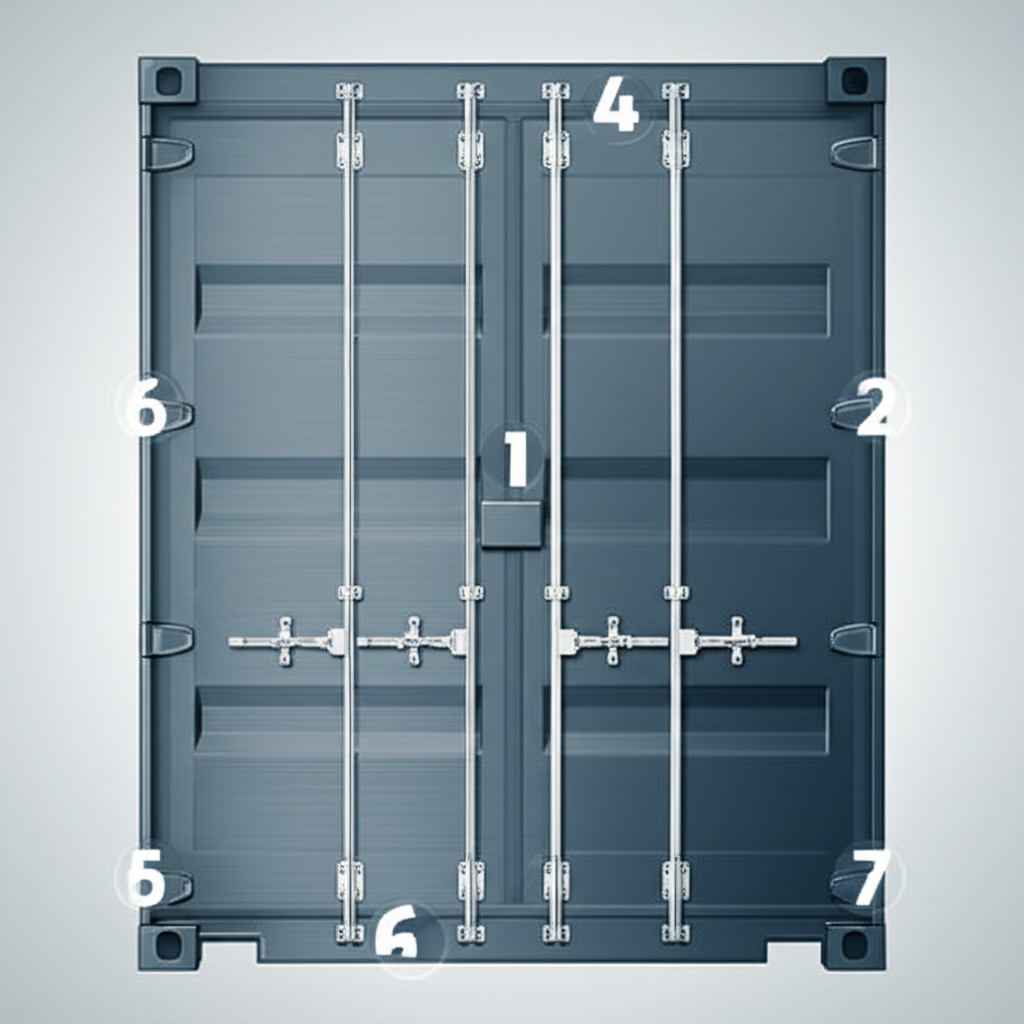

The Official 7-Point Container Inspection: A Step-by-Step Guide
The foundation of a reliable container inspection is the 7-Point Inspection process, a standard widely recognized and promoted by programs like the Customs-Trade Partnership Against Terrorism (CTPAT). This method provides a systematic way to check for structural weaknesses, hidden compartments, and potential security breaches. Performing these checks diligently is the first line of defense in protecting your cargo. Each point covers a critical area of the container, ensuring a comprehensive, 360-degree assessment before it’s loaded.
Following this procedure not only safeguards your goods but also aligns with international security standards, facilitating smoother customs clearance. For shippers, it’s a non-negotiable step to mitigate risks ranging from water damage to theft. Below is a detailed breakdown of each of the seven inspection points.
1. Outside/Undercarriage
Begin your inspection with the undercarriage of the container. The support beams should be visible and intact. This area is often overlooked but can be exploited to hide contraband or may have structural damage from improper handling. Ensure the structure is sound and has not been tampered with. This step is crucial for overall container stability and security.
2. Doors (Inside/Outside)
Container doors are a common point of failure and security breaches. Inspect the locking mechanisms, ensuring the lock rods function correctly and engage properly. Check that the door gaskets are intact and create a tight seal when closed. Look for loose bolts, modified hardware, or signs of forced entry. The seal slots should be present and usable for affixing security seals.
3. Left Side & 4. Right Side
Examine both the left and right exterior and interior walls. Look for any signs of damage such as significant dents, bulges, holes, or cracks. Tap along the structural beams and panels to detect inconsistencies that could suggest hidden compartments. Any unusual repairs or fresh paint on an older container should be investigated further.
5. Front Wall
Inspect the front of the container (the wall opposite the doors). Tap the wall with a tool, listening for any unusual hollow sounds that might indicate a false wall or hidden compartment. Visually inspect for any unusual repairs, patches, or modifications. Ensure all blocks and vents are visible and appear factory-standard.
6. Ceiling/Roof
Inspect the ceiling and roof from both the inside and outside. Look for cracks, holes, or patches that could compromise its watertight integrity. A highly effective method is the ‘light test’: step inside, close both doors, and look for any incoming light. Any visible light means water can get in. Also, check for any unusual repairs that might conceal contraband.
7. Floor
Finally, inspect the container floor. It must be flat, clean, dry, and free from any protruding nails or screws that could damage cargo. Check for a consistent height from the inside; a raised section could indicate a false floor. Pay close attention to any unusual repairs or stains, which could signal previous spills or structural issues. The floor bears the entire weight of the cargo, so its integrity is paramount.
Exterior Inspection: Assessing Structural Integrity and Security
A thorough exterior inspection is essential for verifying that the container can withstand the rigors of transit. The outer shell is the primary barrier against weather, impact, and unauthorized access. Before you even consider the interior, a detailed walk-around can reveal critical flaws that would justify rejecting the container immediately. This process involves more than a quick glance; it requires a methodical check of all external surfaces and components for signs of wear, damage, or tampering.
Start with an overall assessment of the container’s structure. Look for any large dents, bulges, or corrosion that could indicate a weakened frame. A structurally compromised container may not be able to handle stacking or the dynamic forces at sea, putting your cargo at risk. According to guidance from U.S. Customs and Border Protection, all sides of the container must be inspected for unusual repairs or modifications.
Walls and Roof
The integrity of the walls and roof is non-negotiable. Systematically inspect each panel for the following issues:
- Holes and Cracks: Even small openings can allow water to penetrate, leading to significant cargo damage. These are often found near welds or in areas with previous damage.
- Dents and Bulges: Significant deformation can compromise the container’s stacking ability and may indicate internal structural damage.
- Unusual Repairs: Look for patches, fresh paint on an old container, or non-standard welding, as these can be signs of hidden compartments or substandard repairs.
Doors and Locking Mechanisms
The doors are a critical security checkpoint. A faulty door not only risks cargo loss but also presents a major security vulnerability. Your inspection should confirm:
- Proper Sealing: The rubber gaskets around the doors must be intact and pliable to create a watertight seal.
- Functional Hardware: All locking rods should rotate freely, and the handles should fit securely into their retainers. Check for any bent or modified hardware.
- Secure Seal Slots: Ensure the slots for the high-security seal are not damaged or enlarged, which could allow for seal tampering.
Internal Inspection: Ensuring a Clean and Safe Environment for Cargo
Once the exterior is cleared, the internal inspection ensures the container provides a safe, clean, and secure environment for your goods. The interior condition is just as important as the exterior’s structural integrity, as it directly impacts the quality and safety of your cargo upon arrival. Contamination, moisture, pests, and hidden security threats are all risks that can be identified with a careful internal check.
The first impression upon opening the doors is crucial. The container should be clean, dry, and free of strong or unusual odors. Lingering chemical smells or signs of pests can indicate improper cleaning or contamination from a previous shipment, which could transfer to your products. Ensure the interior is completely free of debris from past cargo.
The Light Test for Leaks
The most reliable way to check for holes in the roof and walls is the light test. Step inside the container, have someone close the doors completely, and allow your eyes to adjust to the darkness. Any pinprick of light indicates a hole where water can—and will—enter during transit. This simple yet effective test is a standard procedure recommended in numerous shipping guides and is essential for preventing water damage.
The Floor, Contamination, and Security Check
A detailed floor inspection is vital. The floor must be sound and able to support the weight of the cargo and handling equipment like forklifts. Check for any soft spots, cracks, or splintering. Pay close attention to any unusual repairs or mismatched flooring panels, as these could conceal a false floor designed to hide contraband. The entire floor should be level and free of any protrusions like nails or screws that could puncture your goods. When sourcing products from overseas, ensuring these checks are performed correctly is vital for supply chain security. For businesses needing on-the-ground assurance, services like China Quality Inspection offer container loading supervision to verify these critical steps are completed to specification.
Why This Checklist Is Critical: Preventing Loss and Ensuring Compliance
Using a comprehensive container condition checklist is not merely a procedural formality; it is a fundamental risk management strategy. A flawed container can lead to catastrophic losses, including damaged goods, regulatory penalties, and supply chain delays. By systematically inspecting a container before loading, you are taking a proactive step to protect your investment and maintain the integrity of your operations. The few minutes spent on this inspection can save thousands of dollars and prevent significant logistical headaches.
The primary benefit is the direct protection of your cargo. A container with a small, undetected hole in the roof can expose high-value electronics to water damage, rendering them worthless. Similarly, a floor weakened by rot or damage could collapse during transit, destroying fragile goods. According to an ISO container inspection checklist guide, the goal is to assess structural integrity to guarantee the safe transport of cargo. This process ensures the unit is seaworthy and capable of protecting its contents from the elements and the stresses of shipping.
Beyond cargo protection, this checklist is a crucial tool for regulatory and security compliance. Programs like CTPAT were established to secure the international supply chain, and the 7-point inspection is a core requirement. Adherence demonstrates due diligence and can expedite customs clearance. Failure to comply can result in costly inspections, delays, and potential fines. Furthermore, a thorough inspection helps prevent the transport of pests, contaminants, or illicit goods, safeguarding both your company’s reputation and international biosecurity.
Frequently Asked Questions
1. What is a container inspection checklist?
A container inspection checklist is a systematic tool used to assess the physical condition and structural integrity of a shipping container before cargo is loaded. It guides an inspector through a point-by-point check of key areas like the doors, walls, floor, roof, and undercarriage to ensure the container is secure, clean, and watertight for safe transport.
2. What are the 5 essentials of a quality control checklist?
While specific to general quality control, the principles apply to container inspections. The five key elements are: 1) clear product/container requirements, 2) defined inspection and testing procedures (like the light test), 3) criteria for passing or failing, 4) classification of potential defects (e.g., minor dent vs. major hole), and 5) consistent documentation and collaboration between parties.
3. What is the basic rule when loading a container?
The fundamental rule of loading is to distribute weight evenly. Heavier items should always be placed on the bottom and spread across the floor area to maintain the container’s center of gravity. Lighter goods should be stacked on top. This prevents the container from becoming unstable and reduces the risk of cargo shifting and causing damage during transit.
