TL;DR
A First Article Inspection (FAI) is a critical quality control process in electronics manufacturing. It involves a formal, detailed verification of the first production unit against all engineering drawings and specifications. The primary goal is to validate that the manufacturing process is capable of consistently producing conforming parts before commencing mass production. Key checks include raw materials, equipment calibration, assembly procedures, and final product functionality.
What is First Article Inspection (FAI) and Why is it Crucial in Electronics?
First Article Inspection (FAI) is a systematic process used in manufacturing to formally verify that a new or modified production process produces parts that conform to all engineering and design specifications. As defined by industry standards like AS9102, the FAI process involves a full inspection of a sample part from the first production run. This isn’t just a simple check; it’s a comprehensive review comparing the part to all related documentation, including engineering drawings, purchase orders, and material specifications. The resulting documentation is compiled into a First Article Inspection Report (FAIR).
The importance of FAI in the high-stakes world of electronics manufacturing cannot be overstated. Its primary purpose is to validate the manufacturing process itself. According to an overview from ACDI, FAI confirms that elements like equipment calibration, tooling setup, and production procedures are correctly established to produce components meeting required standards. This validation acts as a powerful risk mitigation tool. By catching design flaws, material discrepancies, or manufacturing errors early, companies can prevent these issues from multiplying across thousands of units, saving significant time and money on costly rework or product recalls.
Ultimately, FAI provides confidence for both the buyer and the supplier. For the supplier, it’s an opportunity to assess the manufacturability of a design, identify potential errors, and solidify their production process. For the buyer, it confirms that their design requirements have been correctly understood and that the supplier is capable of consistently delivering quality products. This foundational step ensures that the very first article is a perfect blueprint for every unit that follows.
The Comprehensive FAI Checklist: Key Areas to Inspect
A successful FAI hinges on a thorough and meticulous inspection that covers every aspect of the product and its creation. While specific requirements can vary, the process generally examines four primary areas to ensure complete conformity. A structured approach ensures no detail is overlooked, from the base materials to the final, functional unit.
1. Raw Materials and Component Verification
The inspection begins before any assembly takes place. Every component and raw material must be verified against the bill of materials (BOM) and engineering specifications. This involves more than just checking part numbers.
- Material Certifications: Examiners must review certificates of conformance (CoC) for all raw materials, such as the specific grade of PCB laminate or the alloy used for a chassis. These documents, as detailed in a guide by 1factory, provide traceability and confirm that materials meet required standards for chemical composition and mechanical properties.
- Component Authenticity: All electronic components are checked for authenticity, correct values (e.g., resistance, capacitance), and tolerance. This step is vital to prevent counterfeit parts from entering the supply chain.
- Physical Attributes: Dimensions, color, and finish of raw materials and mechanical parts are measured and compared against the design files.
2. Tooling and Equipment Calibration
The process cannot be trusted if the tools used to create and measure the product are not accurate. The FAI process validates that all manufacturing and inspection equipment is properly calibrated and set up for the specific production run. This includes verifying SMT machine programming, solder stencils, assembly fixtures, and testing jigs. Ensuring that equipment is calibrated prevents systemic errors that could affect every unit produced.
3. Assembly Process Review
This stage involves a deep dive into the manufacturing and assembly steps to ensure they are performed correctly and in the right sequence. For a Printed Circuit Board Assembly (PCBA), inspectors check numerous factors.
- Component Placement: The position, orientation, and polarity of every component on the board are verified against the assembly drawings.
- Soldering Quality: Solder joints are inspected for defects like bridges, cold joints, or insufficient solder, ensuring they meet standards like IPC-A-610.
- Special Processes: Any special processes, such as conformal coating, potting, or cleaning, are confirmed to have been completed according to specifications. Verifying these steps is crucial for the product’s long-term reliability.
4. Final Product Inspection and Testing
The final stage assesses the completed first article as a whole. This includes a full dimensional analysis, where every feature specified on the engineering drawing—from hole diameters to overall dimensions—is measured and recorded. It also involves comprehensive functional testing to verify that the product works as intended. This could range from simple power-up tests to complex diagnostics that simulate real-world operating conditions.

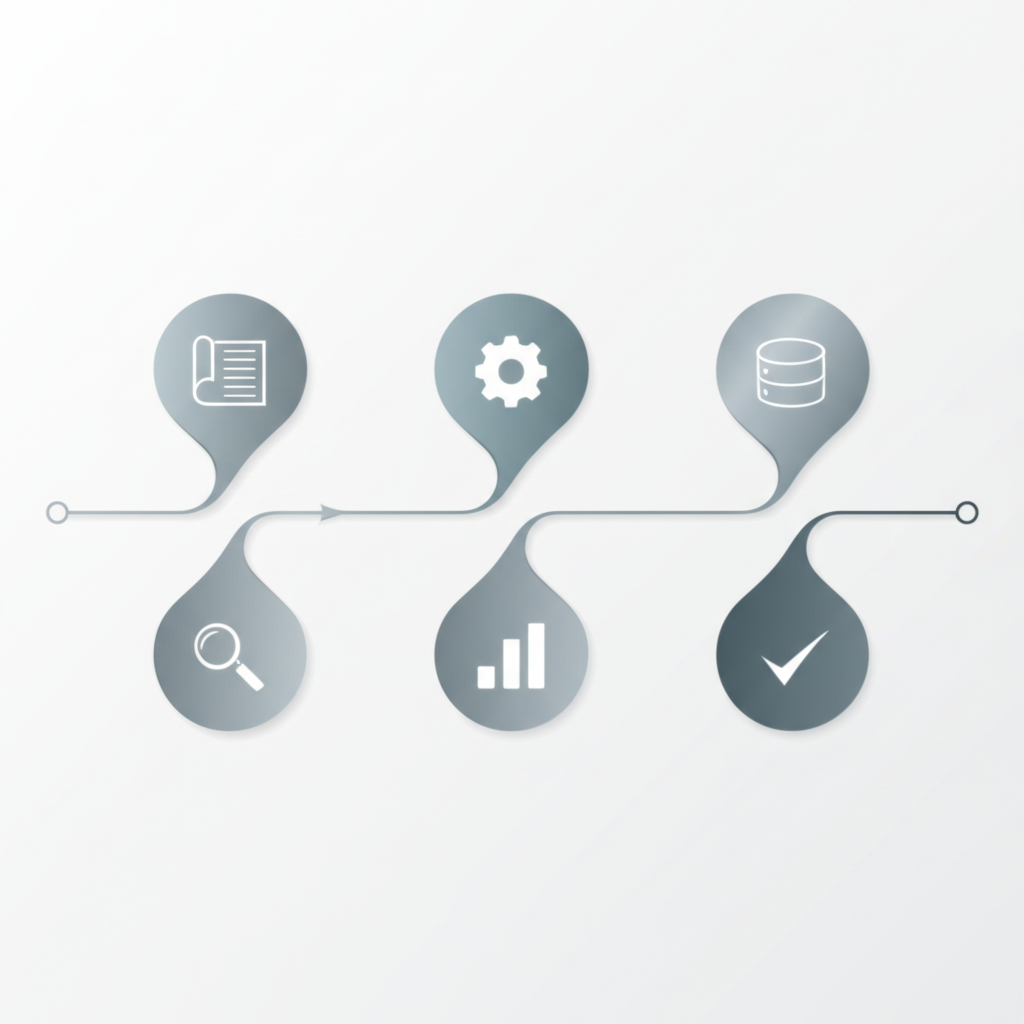

The FAI Process: A Step-by-Step Walkthrough
Conducting a First Article Inspection is a structured procedure that requires careful planning and execution. Following a clear, step-by-step process ensures that the inspection is thorough, repeatable, and properly documented. While the specifics can be tailored, the core methodology remains consistent across the industry.
- Planning and Documentation Review: The process begins long before the first part is produced. The initial step involves gathering and reviewing all relevant documentation, including engineering drawings, the bill of materials (BOM), specifications, and purchase orders. A detailed inspection plan is created, often by “ballooning” the drawing—assigning a unique number to every dimension, note, and specification that needs to be verified.
- Producing the First Article: The first production run is initiated using the finalized manufacturing processes, tooling, and materials. It’s critical that this run simulates the exact conditions that will be used for mass production. A sample part (or a small batch, depending on requirements) is selected from this run to serve as the “first article.”
- Performing the Inspection: This is the most intensive phase. The inspector systematically measures and verifies every characteristic identified in the planning stage. As outlined by Matric, this includes variables such as dimensions and hole placements. Each measurement is recorded against its corresponding ballooned number from the drawing, using calibrated inspection tools.
- Compiling the First Article Inspection Report (FAIR): All findings are meticulously documented in the FAIR. This report typically consists of several forms, such as those specified in the AS9102 standard. It includes the dimensional data, material certifications, special process certifications, and results of functional tests. Any discrepancies or non-conformances are clearly noted in the report.
- Review, Approval, and Corrective Action: The completed FAIR is submitted to the customer for review and approval. If any non-conformances are found, the supplier must identify the root cause and implement corrective actions. A new FAI may be required for the affected characteristics to verify that the issues have been resolved. Once the FAIR is approved, it serves as the green light to begin mass production.
Common Pitfalls in FAI and How to Avoid Them
Even with a well-defined process, a First Article Inspection can be derailed by common mistakes. These errors can lead to delays, rejections, and increased costs. Understanding these pitfalls is the first step toward avoiding them and ensuring a smooth, successful inspection.
Inadequate Documentation
One of the most frequent reasons for FAI rejection is incomplete or inaccurate documentation. This can include missing material certifications, outdated drawing revisions, or an incomplete bill of materials. To avoid this, establish a rigorous document control process. Before starting the FAI, double-check that all drawings are on the correct revision and that all required certificates of conformance are present and accounted for.
Poor Communication with Suppliers
Clear communication between the customer and the manufacturer is essential. Ambiguities in the engineering drawings, unspecified quality requirements, or uncommunicated design changes can lead to misunderstandings and non-conforming parts. Hold a kickoff meeting to ensure all parties are aligned on the requirements. When sourcing from overseas, these challenges can be amplified. For businesses working with international partners, engaging a trusted third party can be invaluable. Services that offer on-the-ground support, such as those provided by China Quality Inspection, can act as your eyes in the factory, ensuring specifications are met through comprehensive audits and inspections before shipment.
Improper Sample Selection
The part selected for the FAI must be representative of the standard production process. Using a part made with prototype tooling, by a different method, or by the most skilled technician will not validate the mass production process. Ensure the first article is produced using the exact equipment, processes, and personnel intended for the full production run. This ensures the FAI results are a true reflection of the process’s capabilities.
Rushing the Inspection
Under pressure to start production, teams may be tempted to rush the FAI. This can lead to missed measurements, inaccurate data entry, or overlooked non-conformances. It is crucial to allocate sufficient time for a thorough inspection. Using checklists and having a documented, repeatable procedure helps ensure all steps are completed correctly, even when deadlines are tight. Remember, the time invested in a proper FAI prevents far greater delays and costs down the line.
Frequently Asked Questions
1. What is included in FAI?
A First Article Inspection includes a comprehensive verification of a production part against its design documentation. Key inclusions are a full dimensional record of every feature on the engineering drawing, verification of raw materials and components through certificates of conformance, validation of any special processes (like plating or heat treating), and the results of all required functional tests. The goal is to ensure the entire manufacturing process is capable of producing a conforming part.
2. What are the 4 types of inspection?
In quality control, there are generally four main types of inspections that occur at different stages of production. These include Pre-Production Inspection (verifying raw materials before production begins), During Production Inspection (checking products on the assembly line to catch issues early), Pre-Shipment Inspection (a final check of finished goods before they leave the factory), and Container Loading/Unloading Inspection (ensuring goods are loaded and transported correctly).
