TL;DR
A First Article Inspection (FAI) report is a critical quality control document that verifies a manufacturing process can produce parts conforming to all engineering and design specifications. It serves as a formal record comparing the design requirements against the actual production results from an initial run. This guide provides a step-by-step process for conducting an FAI and completing the necessary report, including an explanation of the standard AS9102 forms used widely in industries like aerospace.
What is a First Article Inspection (FAI) Report?
A First Article Inspection (FAI) is a comprehensive verification process in manufacturing. Its primary purpose is to confirm that a supplier’s production methods are capable of consistently producing parts that meet every requirement specified by the customer, including drawings, material specifications, and other design documents. The “first article” isn’t necessarily the very first part off the line, but rather a randomly selected sample from the first full production run. This inspection validates the entire manufacturing process, from raw materials to final assembly.
The FAI report, often abbreviated as FAIR, is the formal document that records the results of this inspection. It provides objective evidence that all engineering and design requirements have been understood, accounted for, verified, and documented. For the manufacturer, an FAI is an opportunity to validate their tooling and processes. For the buyer, it provides the confidence needed to authorize full-scale production, mitigating the risk of costly errors or rework down the line.
An FAI is not a one-time event. It should be performed in several key scenarios, including:
- New Product Introduction: The most common trigger for a full FAI.
- Design Changes: When a part’s design is revised, a partial or full FAI is needed to validate the changes.
- Process Changes: Any modification to the manufacturing process, such as new tooling, a different machine, or a change in location, requires an FAI.
- Lapse in Production: If a part has not been produced for an extended period (typically two years), an FAI is required to ensure the process is still capable.

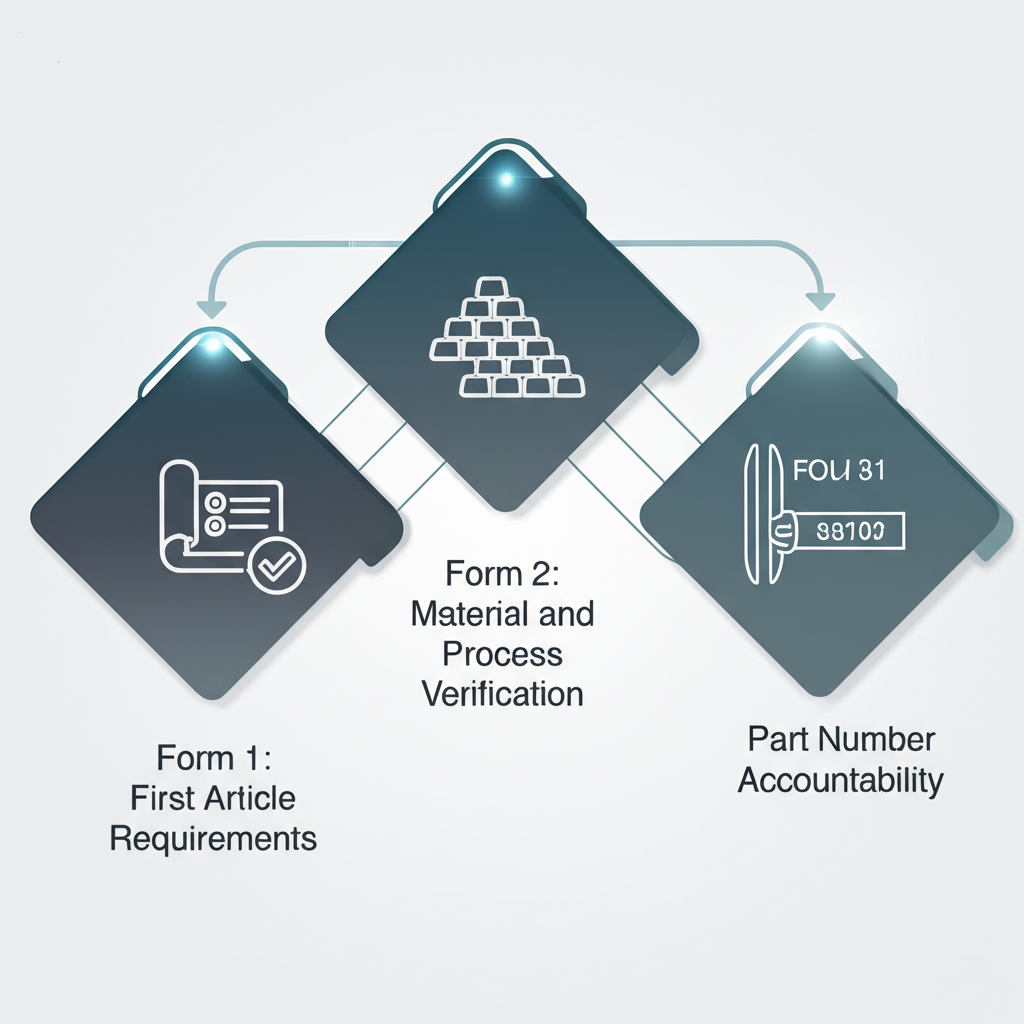

The Standard FAI Structure: Explaining AS9102 Forms
While various industries have their own FAI formats, the AS9102 standard, developed for the aerospace and defense industries, is a widely adopted benchmark. It provides a structured and detailed approach to documentation, ensuring nothing is overlooked. The AS9102 report is divided into three essential forms, each serving a distinct purpose.
Form 1: Part Number Accountability
This form serves as the summary or cover sheet for the entire FAI report. It identifies the part being inspected, including the part number, name, and serial number. Form 1 also links the FAI to the specific manufacturing run or work order. If the part is an assembly, this form lists all the sub-components and their corresponding FAI reports, ensuring complete traceability from the top-level assembly down to its individual details.
Form 2: Product Accountability
Form 2 documents all the materials, special processes, and functional tests required by the design specifications. This section provides evidence that the correct raw materials were used and that any special processes—such as heat treating, plating, or anodizing—were performed by approved suppliers and meet requirements. It requires listing material specifications, supplier codes, and references to certificates of conformance (CoC). Any functional testing procedures and their acceptance reports are also recorded here.
Form 3: Characteristic Accountability
This is the most detailed part of the FAI report. Form 3 verifies every single design characteristic on the engineering drawing and specifications. Each dimension, tolerance, note, and specification must be listed with its unique requirement and the corresponding measurement result from the inspected part. To facilitate this, a “ballooned” or “bubbled” drawing is created, where each characteristic is assigned a unique number that corresponds to an entry on Form 3. This form also documents the inspection tools used for each measurement, ensuring traceability and confirming that the measurement equipment was properly calibrated.
| Form | Purpose | Key Information |
|---|---|---|
| Form 1: Part Number Accountability | Summarizes the part and any sub-assemblies. | Part Number, Part Name, Serial Number, FAI Report Number, Assembly Details. |
| Form 2: Product Accountability | Documents materials, processes, and tests. | Raw Material Specifications, Special Process Certifications, Functional Test Results. |
| Form 3: Characteristic Accountability | Records every design characteristic and its measurement. | Balloon Number, Requirement, Tolerance, Measurement Result, Pass/Fail Status, Tooling ID. |
How to Conduct an FAI and Complete the Report: A Step-by-Step Guide
Conducting a First Article Inspection is a methodical process that requires careful planning and execution. Following a structured approach ensures that all requirements are met and the final report is accurate and complete. Here is a five-step guide to performing an FAI.
- Pre-Planning and Document Gathering
Before any inspection begins, gather all necessary documentation. This includes the latest versions of engineering drawings, digital models, bills of materials, material and process specifications, and any customer-specific requirements. Proper planning at this stage prevents delays and ensures the inspection team has all the information they need. - Creating an Inspection Plan
The next step is to create a detailed inspection plan. This involves creating the ballooned drawing, where every characteristic on the design documents is uniquely identified. Based on this, you will populate the FAI report forms, starting with Forms 1 and 2, using the information gathered in the pre-planning phase. Form 3 will be filled out with the characteristics from the ballooned drawing, leaving the results column blank for now. - Manufacturing the Part
Produce the first production run using the exact processes, materials, and tooling intended for mass production. It is crucial that this run is representative of the standard manufacturing environment. A random sample part (or parts, as specified by the customer) is then selected for inspection. - Collecting Data and Performing the Inspection
With the sample part and the inspection plan, the quality inspector meticulously measures each characteristic listed on Form 3. Every dimension, note, and specification is checked against the design requirements. It is essential to use calibrated and traceable inspection tools for this process. For companies sourcing components from overseas, ensuring this step is done correctly is paramount. Organizations that require a trusted partner on the ground can benefit from third-party services. For example, some companies specialize in providing comprehensive factory audits and meticulous pre-shipment inspections. According to China Quality Inspection, such services act as your “eyes in the factory,” ensuring products meet exact specifications before shipment. - Compiling and Submitting the Report
Once all measurements are complete, the results are entered into Form 3. Each characteristic is marked as conforming (pass) or non-conforming (fail). Any non-conformances must be documented, and a corrective action plan may be required. The completed FAI report, including all three forms, the ballooned drawing, and any supporting certificates, is compiled into a single package and submitted to the customer for approval.
What to Look for in an FAI Report Template
While the AS9102 standard provides a clear framework, many companies use digital templates, often in Excel or specialized software, to streamline the FAI process. When selecting or creating a template, it’s important to ensure it contains all the necessary elements to be effective and compliant. A good FAI report template should be more than just a data entry sheet; it should be a tool that guides the user through a logical and thorough inspection.
A functional template should have separate, clearly labeled sections or tabs for each of the three standard forms: Part Number Accountability, Product Accountability, and Characteristic Accountability. This structure ensures that all aspects of the AS9102 standard are addressed. The template should include fields for all required information, with clear instructions or examples for each entry. For instance, Form 3 should have columns for the characteristic number, the design specification (including tolerance), the measurement result, and a pass/fail determination. Including a field for the measurement tool used adds another layer of traceability.
Furthermore, an effective template should be designed for clarity and ease of use. Using color-coding to highlight required versus optional fields can help prevent incomplete reports. The ability to link or embed supporting documents, such as material certifications or the ballooned drawing, directly into the file is also a valuable feature. Ultimately, the goal of a template is to ensure consistency, accuracy, and completeness in your First Article Inspection reporting, making the process more efficient and less prone to human error.
Frequently Asked Questions About FAI Reports
1. How do you do a First Article Inspection report?
Creating a First Article Inspection report involves five main steps: 1) Pre-planning and gathering all design documents, 2) Creating an inspection plan by ballooning the drawing and preparing the report forms, 3) Manufacturing a sample part from the first production run, 4) Collecting measurement data for every characteristic, and 5) Compiling all results and supporting documents into the final report for submission.
2. How do you start writing an inspection report?
To start writing any inspection report, including an FAI, begin by gathering and organizing all relevant information. This includes the design drawings, material specifications, and a clear understanding of the inspection criteria. The first section to complete is typically the administrative data, such as the part number, revision, and manufacturer details, which corresponds to Form 1 of the AS9102 standard.
3. What does a good inspection report look like?
A good inspection report is complete, accurate, and easy to understand. It should be fully traceable, meaning every piece of information can be tied back to a specific requirement, measurement, or document. For an FAI report, this means a cleanly ballooned drawing, all fields on Forms 1, 2, and 3 filled out correctly, and all supporting documentation like material certifications and test results included. Clarity and organization are key to a report that inspires confidence in the manufacturing process.
