TL;DR
A First Article Inspection (FAI) is a formal process to verify that a manufacturing process can consistently produce parts that meet all engineering and design specifications. Conducting one involves three core phases: preparation, where you gather all technical drawings and create an inspection plan; execution, where you manufacture a sample from the first production run and meticulously inspect it against the plan; and reporting, where you document all findings in a First Article Inspection Report (FAIR) to approve the process for mass production.
Understanding the ‘Why’ and ‘What’ of a First Article Inspection
A First Article Inspection (FAI) is a critical quality control procedure that validates a manufacturer’s production process. As defined by industry experts, it is a detailed verification comparing the product design requirements against the actual production results. The core purpose is not just to inspect a single part, but to confirm that the entire manufacturing process—from raw materials and tooling to personnel and procedures—is capable of producing compliant parts consistently. This inspection serves as the definitive proof that a supplier has understood and correctly interpreted all design specifications before full-scale production begins.
The importance of an FAI cannot be overstated. It acts as a crucial risk mitigation tool for both the buyer and the supplier. For the buyer, it provides confidence that the products ordered will meet functional and quality standards, preventing costly downstream errors, recalls, or field failures. For the supplier, it’s an opportunity to confirm the manufacturability of a design, identify potential production issues early, and establish a repeatable process that ensures quality. According to a detailed guide on the topic, this step is essential for confirming that design requirements have been fully understood and that the supplier’s process is capable of delivering good parts.
An FAI is not a one-time event. A full FAI is required whenever a new product is introduced or when a part has not been produced for an extended period (typically over two years). Furthermore, a full or partial FAI is triggered by any significant change that could potentially affect the part’s fit, form, or function. Common triggers include:
- A change in the part’s design or revision.
- A change in the manufacturing process, such as new tooling, machinery, or programs.
- A move to a new manufacturing facility or a change in suppliers for materials or outside processing.
- A customer request to re-validate the process.
Phase 1: The FAI Preparation and Planning Stage

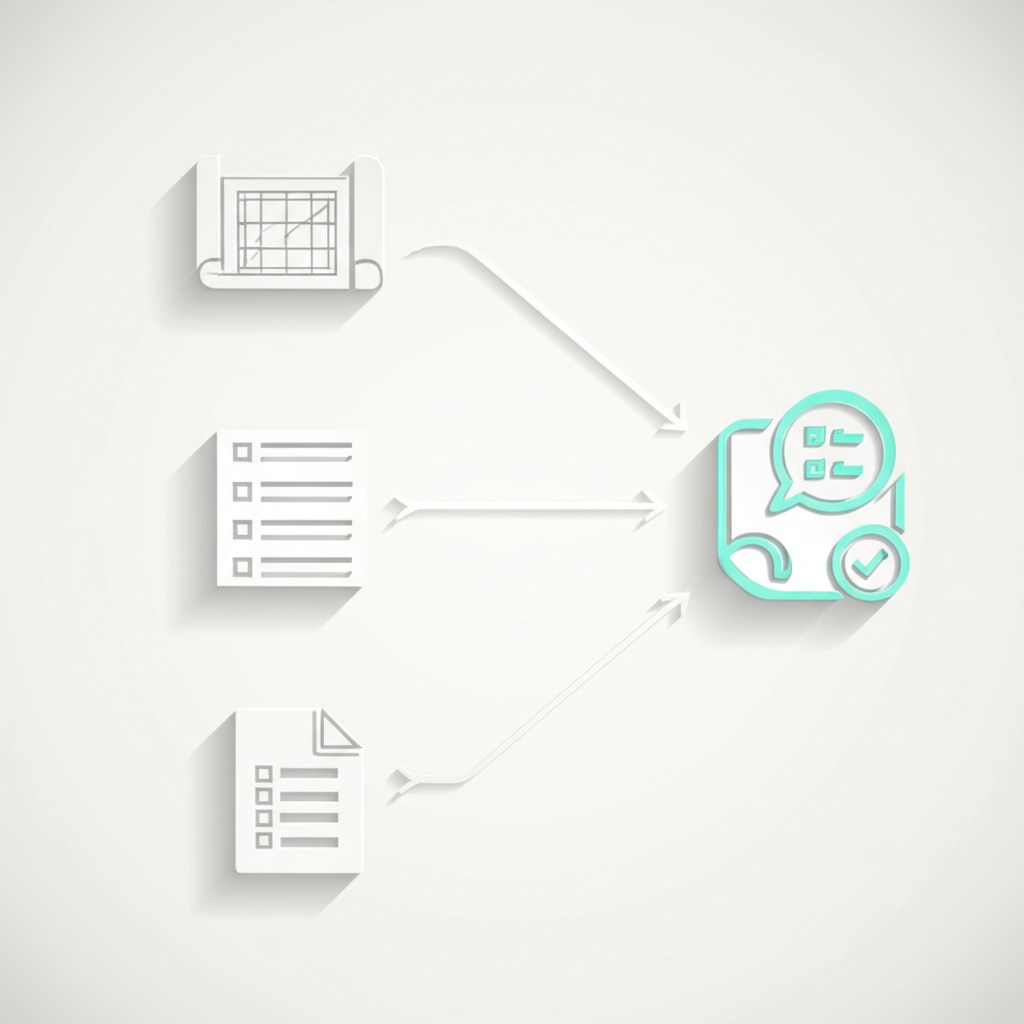

Thorough preparation is the foundation of a successful First Article Inspection. Rushing this stage can lead to inaccurate results and costly delays. The first step involves gathering and meticulously reviewing all relevant engineering and design documentation. This ensures the inspection is based on the correct specifications and that nothing is overlooked. According to a step-by-step guide from InspectionXpert, your pre-planning checklist should include engineering drawings, a bill of materials (BOM), raw material specifications, and any other relevant customer requirements.
Once all documentation is assembled, the next critical task is to create a detailed inspection plan. This plan serves as the roadmap for the entire inspection. A key part of this is the creation of a ballooned drawing (also called a bubble drawing). In this process, every single design characteristic on the drawing—including dimensions, tolerances, notes, and GD&T symbols—is assigned a unique number inside a balloon. This ensures that every requirement is systematically checked and accounted for during the physical inspection.
With the ballooned drawing complete, you can prepare the formal documentation, most commonly the AS9102 First Article Inspection Report (FAIR) forms. This involves pre-populating Form 1 (Part Number Accountability) and Form 2 (Product Accountability) with information like part numbers, material specifications, and special process details. You should also populate Form 3 (Characteristic Accountability) with all the ballooned requirements from the drawing. Finally, identify and calibrate all necessary measurement tools, such as calipers, micrometers, or Coordinate Measuring Machines (CMMs), ensuring they are traceable and have adequate resolution for the required measurements.
Phase 2: The Step-by-Step FAI Execution Process
With a solid plan in place, the execution phase begins. This is where the physical part is produced and measured. The first step is to conduct the first production run. It is crucial that this run uses the exact same materials, machinery, tooling, and processes that will be used for mass production. Using prototype methods or different equipment will invalidate the FAI, as the goal is to approve the final, repeatable manufacturing process.
Next, a sample part (or parts, depending on the plan) is randomly selected from this run for inspection. The inspector then performs a meticulous dimensional and visual verification. Following the ballooned drawing and the inspection plan, every single characteristic is measured and visually checked against the design specifications. Each measurement result is carefully recorded next to its corresponding characteristic number on the FAIR form. This is the most time-consuming part of the FAI and demands extreme attention to detail.
Beyond dimensional checks, the FAI must also verify all other specifications. This includes reviewing material and special process certifications to ensure they conform to requirements. For example, if a part requires a specific grade of aluminum and a hard anodizing finish, the inspector must obtain and verify the certificates of conformance (CoCs) from the respective suppliers. Any required functional or performance testing is also conducted at this stage to ensure the part works as intended. For companies managing complex supply chains, especially those sourcing from China, having a trusted partner on the ground for comprehensive factory audits and meticulous pre-shipment inspections can be invaluable. These services act as your eyes in the factory, ensuring products meet exact specifications before they are shipped.
Phase 3: Compiling the First Article Inspection Report (FAIR)
The final phase of the FAI process is to compile all the collected data into the formal First Article Inspection Report (FAIR). This report is the official deliverable that documents the entire process and certifies that the part conforms to all specifications. The most widely used format, particularly in the aerospace and defense industries, is the AS9102 standard, which consists of three main forms.
The FAIR provides a complete and traceable record of the inspection. Its key components are:
- Form 1: Part Number Accountability. This form summarizes the part being inspected. It includes the part number, revision level, part name, and details of any sub-assemblies involved. It serves as the top-level summary of the FAI.
- Form 2: Product Accountability. This section documents all the materials, special processes, and functional tests required by the design. It lists raw material specifications, vendor information for special processes like heat treating or plating, and references to functional test procedures and their results.
- Form 3: Characteristic Accountability. This is the heart of the FAIR. It is a detailed log of every design characteristic from the ballooned drawing. Each line item includes the characteristic number, the specification (e.g., dimension and tolerance), the actual measurement result, the measurement tool used, and a pass/fail determination. Any non-conformances must be clearly documented here.
Once all forms are complete and all supporting documentation (like material certifications and test results) is attached, the FAIR is reviewed by relevant stakeholders and submitted to the customer for approval. A signed-off FAIR gives the green light to proceed with mass production, providing a baseline of quality and process capability that all future parts will be measured against.
Beyond the Checklist: The Value of a Robust FAI Process
Completing a First Article Inspection is more than just a procedural checkbox; it is a strategic investment in quality and reliability. A well-executed FAI establishes a clear, objective baseline for a product’s manufacturing process, ensuring that everyone from the engineer to the machine operator is working from the same set of approved standards. This alignment minimizes ambiguity and dramatically reduces the risk of defects reaching the customer.
By catching deviations early, the FAI process prevents the immense costs associated with rework, scrap, and potential product recalls after mass production has begun. It fosters transparency and accountability between suppliers and customers, building trust through verifiable data. Ultimately, a robust FAI process is a cornerstone of a mature quality management system, driving continuous improvement and ensuring that the final product consistently meets the highest standards of excellence.
Frequently Asked Questions
1. How do you perform a First Article Inspection?
Performing a First Article Inspection involves a systematic, three-phase approach. First, you plan by gathering all engineering drawings, specifications, and material requirements to create a detailed inspection checklist, often by ‘ballooning’ the drawing. Second, you execute by manufacturing one or more parts using the final production process and then meticulously inspecting every characteristic against your plan. Finally, you report by documenting all measurements and findings in a formal First Article Inspection Report (FAIR) for review and approval.
2. What are the key steps in the inspection process?
The key steps in the inspection process are: 1) Document Review & Planning: Gather all specifications and create a ballooned drawing and inspection plan. 2) First Production Run: Manufacture the sample part using the intended mass-production process. 3) Verification: Conduct a comprehensive visual and dimensional inspection of the part against every requirement on the drawing. 4) Documentation: Record every measurement result and attach supporting documents like material certifications. 5) Reporting: Compile all information into a complete First Article Inspection Report (FAIR) for final approval.
